BeamTracker Technical Specifications
In the box

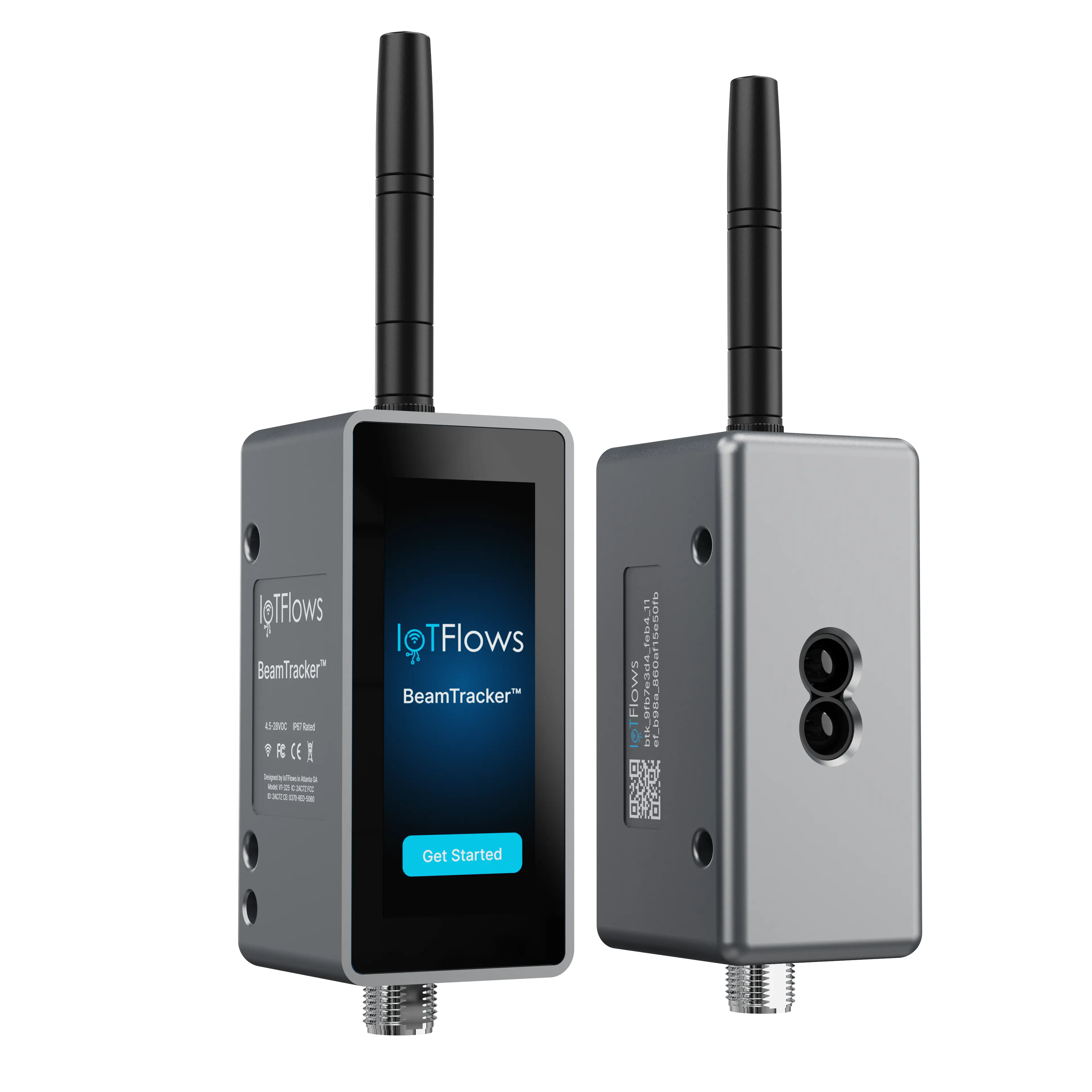

BeamTracker and antenna
M12 Connector Power Adapter
(ordered with it)
Mounting Hardware
(ordered with it)
Available Mounts
Rotatable Ball Head Mount
(Compatible with any 1/4"-20 thread mount)
L-shaped Bracket
Mount BeamTracker square across the part path, where every good unit passes the beam and nothing else does, within 8 m (26 ft). It bolts on with its mount in 10 to 20 minutes. Step by step in Install and align BeamTracker and Calibrate BeamTracker.
Available Cables
M12 5pin A-code Female to Power Adapter
(Available in 2 m length)
M12 5pin A-code Male to Female
(Available in 1 m and 3 m lengths)
Software
Smarter laser monitoring for any production line
BeamTracker counts each unit that breaks its laser beam, with ±2% count accuracy, and the time between counts tells when the line runs and when it stops, with no PLC and no wiring into the controls. IoTFlows turns that into part counts and throughput, utilization and running time, downtime with reasons, and history by day, week, month, quarter or year, with alerts and work orders on the web dashboard, the iOS and Android apps and the screens on your floor.
Accessories
M12 5pin A-code T-type Splitter
Subscription Cost
$119/month
Per BeamTracker device on the Pro plan, billed monthly
On an annual plan paid upfront, $99 a month ($1,188 a year); on three years paid upfront, $59.50 a month. Prices drop from 10 and from 25 devices, and 50 or more devices are quoted.
Learn about our pricing plans →Dimensions
Housing 3.47 × 1.59 × 1.65 in (88.3 × 40.5 × 42 mm), height × width × depth · Antenna 2.54 in (64.4 mm) above the housing · 1/4"-20 mount thread on the side
Color
Space Gray
Material
Aluminum Alloy
Durability & Protection
IP67
Dustproof, and protected against immersion to 1 m (3 ft) for 30 minutes.
Connectivity
Wi-Fi (2.4 GHz only)
4G LTE (through the IoTFlows 4G/LTE router, sold separately)
An external screw-on antenna; connect it before powering on. BeamTracker connects out over HTTPS on port 443 and sets up over Bluetooth from the IoTFlows app, started from a QR code on its screen.
Display

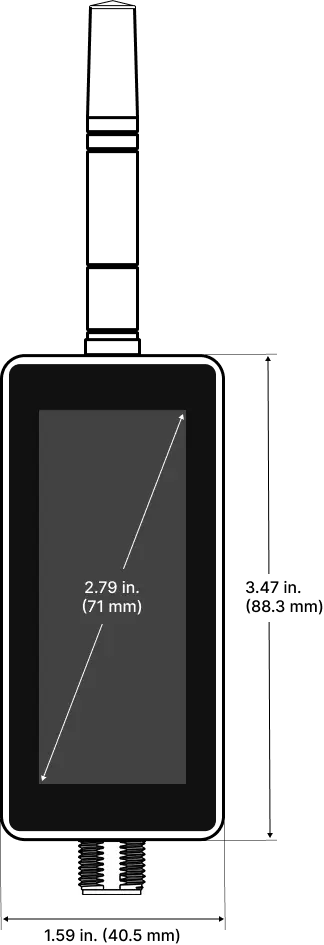

Built-in touchscreen, 2.79 in (71 mm) diagonal
For setup, Wi-Fi provisioning, calibrating the range at the machine, and the live count and status.
Weight
245 g
Range
Up to 8 m (26 ft), resolved to the millimetre
The background must sit at least 7 cm from the sensor; the detection zone is set in front of it.
Accuracy
±2% count accuracy, on each unit that breaks the beam
Power modes
BeamTracker runs on 4.5 to 28 V DC over an industrial M12 connector (5-pin, A-coded): from the M12 power adapter into a 100 to 240 V AC outlet, or piggy-backed through an M12 T-splitter to share one adapter between BeamTrackers mounted close together.
Operating temperature
-20°C to +70°C (-4°F to +158°F)
Support
BeamTracker is covered by a one-year limited warranty. Our support team is here to help, and the BeamTracker guide has set-up steps and troubleshooting, including a device that is offline. Or get in touch with our product specialists.
