SenseAi Embedded Technical Specifications
In the box

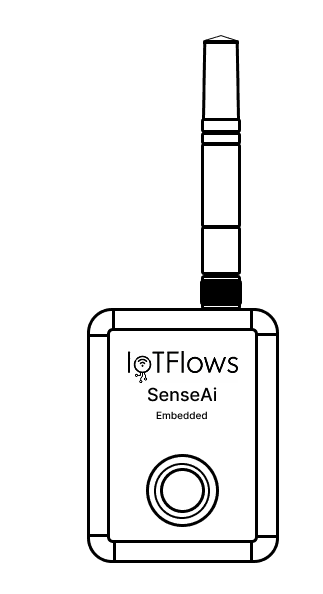

SenseAi Embedded and antenna
M12 Connector Power Adapter
(ordered with it)
Available Cables
M12 5pin A-code Female to Power Adapter
(Available in 2 m length)
M12 5pin A-code Male to Female
(Available in 1 m and 3 m lengths)
Mounting
SenseAi Embedded mounts magnetically on a clean steel or iron surface on the motor, the spindle or the housing that carries them; paint makes no difference. The housing is sealed, so mount it near the source, through coolant, cutting fluid and washdown. It attaches magnetically in seconds and calibrates in under five minutes, and IoTFlows registers each sensor to its machine before it ships. To move it, lift it off: nothing on the machine changes.
Step by step in Install and power up SenseAi Embedded and Calibrate SenseAi and SenseAi Embedded.
Software
AI-powered production monitoring for any machine
SenseAi Embedded reads vibration and temperature at the motor, spindle or housing it is mounted on, with no PLC and no wiring into the controls. IoTFlows turns that into machine status in real time, uptime and utilization, downtime with reasons, part counts and cycle times, and machine health: a health score against a baseline profile, operations metrics such as bearing health and imbalance, the vibration spectrum, X, Y and Z trends and shock events, and the temperature, with alerts and work orders on the web dashboard and the iOS and Android apps.
Accessories
M12 5pin A-code T-type Splitter
Subscription Cost
$119/month
Per SenseAi Embedded device on the Pro plan, billed monthly
On an annual plan paid upfront, $99 a month ($1,188 a year); on three years paid upfront, $59.50 a month. Prices drop from 10 and from 25 devices, and 50 or more devices are quoted.
Learn about our pricing plans →Dimensions

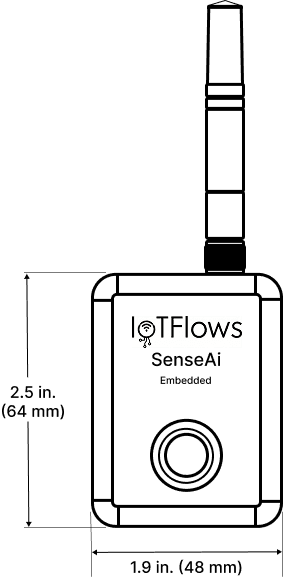

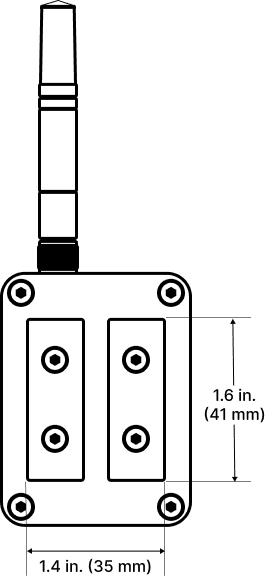

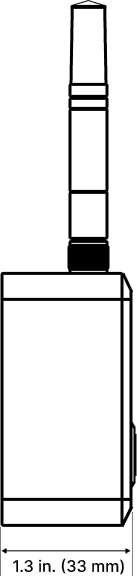

Housing 2.5 × 1.9 × 1.3 in (64 × 48 × 33 mm) without the antenna · Magnetic base 1.6 × 1.4 in (41 × 35 mm)
Color
Space Gray
Material
Aluminum Alloy
Durability & Protection
IP67
Dustproof, and protected against immersion to 1 m (3 ft) for 30 minutes.
Connectivity
Wi-Fi (2.4 GHz only)
4G LTE (through the IoTFlows 4G/LTE router, sold separately)
An external screw-on antenna. SenseAi Embedded connects out over HTTPS on port 443 and sets up over Bluetooth from the IoTFlows app for iOS or Android.
Weight
175 g
Power modes
SenseAi Embedded runs on 4.5 to 28 V DC over an industrial M12 connector (5-pin, A-coded) with a locking collar: from the M12 power adapter into a standard 100 to 240 V AC outlet, or piggy-backed through an M12 T-splitter to power units mounted close together from one supply.
Operating temperature
-20°C to +60°C (-4°F to +140°F)
Support
SenseAi Embedded is covered by a one-year limited warranty. Our support team is here to help, and the SenseAi Embedded guide has set-up steps, troubleshooting and every LED and status code. Or get in touch with our product specialists.
